Towards time- and angle-resolved photoelectron spectroscopy of ultrafine weakly-bound aerosol particles


    Prof. Dr. Rachel Grange
ETH Zürich
Department of Physics
Institute for Quantum Electronics
Optical Nanomaterial Group
Auguste-Piccard-Hof 1
HPT H2
8093 Zürich
+41 44 633 3708

.
Project starts   1.1.2016
Project ends    30.6.2018

Goals   To overcome the challenging fabrication of photonic crystals from ultrafast nonlinear optical nanomaterials, such as lithium niobate (LiNbO3) and barium titanate (BaTiO3), by using solution based processing of nanoparticle dispersions.

Project
partners

  Dr. Nicholas Hendrick
Optical Nanomaterial Group
+41 44 63 3 39 26

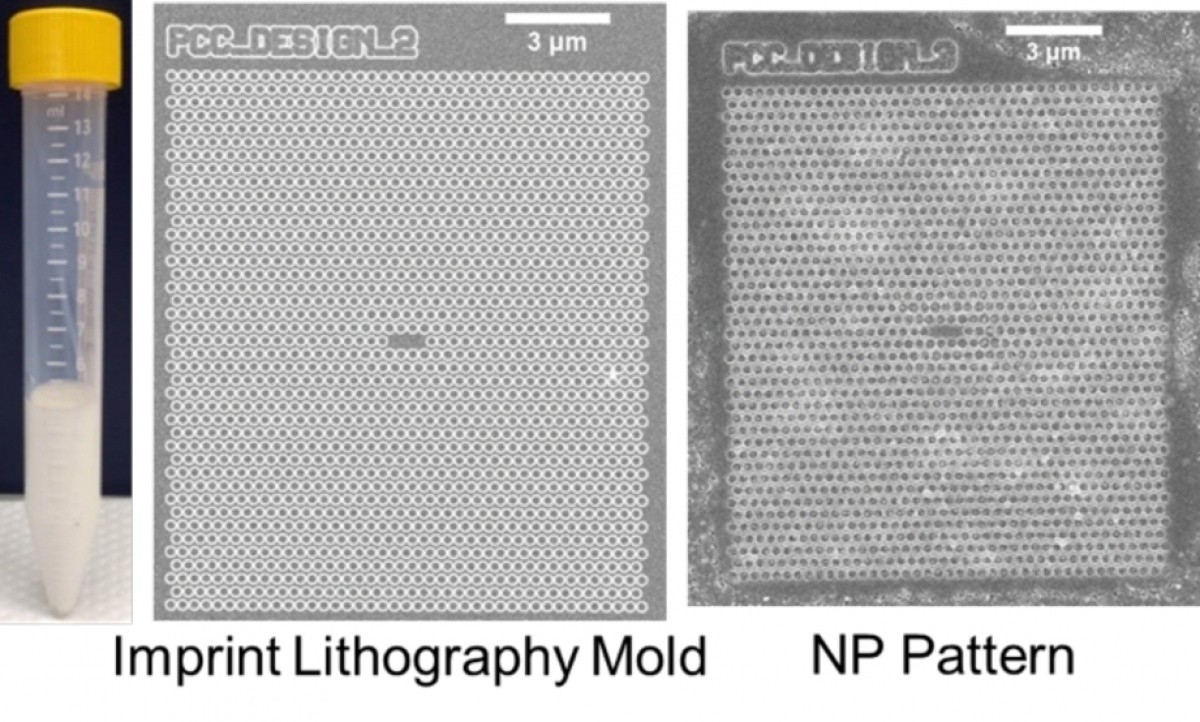

Abstract    Fabrication of ultrafast nonlinear photonic crystals is often challenging and requires unique processing conditions due to inherent material properties, e.g. high etch resistance, of nonlinear optical materials.  Top-down approaches are well-suited for semiconductor based devices but becomes more difficult for perovskite based nonlinear materials such as lithium niobate (LiNbO3) or barium titanate (BaTiO3).  Therefore, we propose to demonstrate solution-based processing for the fabrication of nonlinear photonic crystals, via nanoparticle dispersions of such perovskite materials, which is a combination of bottom-up processing and imprint lithography that allows for 2D and 3D photonic structures to be created in a straightforward manner.  The long-term goal of this project is to create miniaturized integrated devices, e.g. wavelength-division multipliers (WDMs), molecularly sensitive sensors, which will lead to technology spin-off opportunities, by facilitating and accelerating the fabrication of sophisticated optical components with nonlinear optical nanomaterials.
